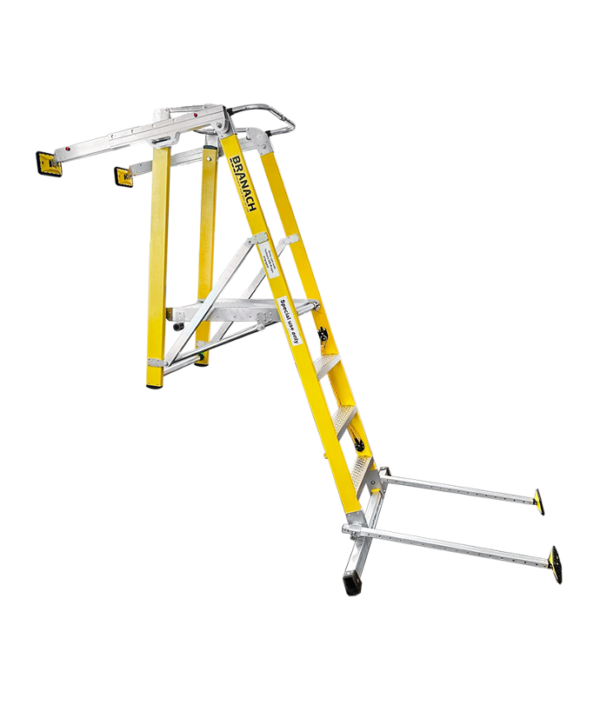

The Branach Tunnel Ladder is an innovative access solution designed specifically for working on curved tunnel walls. Engineered for optimal ergonomics, safety, and comfort, it provides a secure working angle that minimizes strain, boosts productivity, and enhances worker well-being on even the most challenging tunnel projects.
Precision Fit for Curved Walls – Designed specifically for tunnel environments.
Ergonomic Working Angle – Minimizes back strain and fatigue.
Enhanced Stability – Safe and secure platform for any task.
Worker-Centric Design – Improves comfort and focus on the job.
Boosts Efficiency – Healthy workers are more productive.
Built Tough – Withstands demanding industrial conditions.
| Code | Model | Weight | Distance between rungs | Open Height | Closed Height | Platform Height | Handrail Height | Leg Length | Closed Width | Number of Steps | Technical Datasheet |
|---|---|---|---|---|---|---|---|---|---|---|---|
| FPT 1.2 | 25kg | 305mm | 2.05m | 2.15m | 1.2m | 0.9m above platform | 1.26m | 0.5m | 4 | Tunnel Ladder FPT 1.2 | |
| FPT 1.5 | 25.5kg | 305mm | 2.34m | 2.45m | 1.5m | 0.9m above platform | 1.26m | 0.5m | 5 | Tunnel Ladder FPT 1.5 | |
| FPT 1.8 | 26kg | 305mm | 2.63m | 2.76 | 1.8m | 0.9m above platform | 1.26m | 0.5m | 6 | Tunnel Ladder FPT 1.8 | |
| FPT 2.1 | 27.5kg | 305mm | 2.93m | 3.06m | 2.1m | 0.9m above platform | 1.26m | 0.5m | 7 | Tunnel Ladder FPT 2.1 | |
| FPT 2.4 | 29kg | 305mm | 3.23m | 3.37m | 2.4m | 0.9m above platform | 1.26m | 0.5m | 8 | Tunnel Ladder FPT 2.4 | |
| FPT 2.7 | 30.5kg | 305mm | 3.51m | 3.67m | 2.7m | 0.9m above platform | 1.26m | 0.5m | 9 | Tunnel Ladder FPT 2.7 | |
| FPT 3.0 | 32kg | 305mm | 3.80m | 3.98m | 3.0m | 0.9m above platform | 1.26m | 0.5m | 10 | Tunnel Ladder FPT 3.0 |
