TRIMMEX CUTTOGRAF NO. 69111

TRIMMEX CUTTOGRAF NO. 69111
The Cuttograf is a swivel style deburring tool with rounded tipes that automatically adjusts to the optimal deburring angle. It’s ideal for trimming flash off straight or round edges of steel, aluminum, copper and plastic.
• Swivel style deburring tool
• Contoured blade for easy trimming
• Easy, tool free blade change

Product Details

Dimension

Knife size (L x W x H) : 145 x 16 x 18 mm
Main Material :   Glass fibre reinforced plastic
Weight :   24 g

Technical Features

Adaptable Blade PositionerBlade RetractableAbrasion ResistantErgonomicFor Right and Left HanderLanyard HoleTool-less Blade ChangeDiameter and form of grip (oval 18 mm)

Cutting Materials

Coated filmLaminated filmLayers of foil or paperMetal BlurrPlastic burrRubber BlurrTextile, materialYarn, cord

Installed Blade

Scalpel Blade No 11

Length of Blade:  41.5 mm
Width of Blade:  5.9 mm
Material Thickness:  0.4 mm
Packaging Unit:  10 in a magazine (10 magazines in a multipack)
Ground Edge:  2-sided ground-edge
Blade Facets:  Single bevel edge-ground

Optional Blades

Scalpel Blade No 1031

Length of Blade:  42 mm
Width of Blade:  7.5 mm
Material Thickness:  0.4 mm
Packaging Unit:  10 in a magazine (10 magazines in a multipack)
Ground Edge:  2-sided ground-edge
Blade Facets:  Single bevel edge-ground

Scalpel Blade No 10

Length of Blade:  41.7 mm
Width of Blade:  7.2 mm
Material Thickness:  0.4 mm
Packaging Unit:  10 in a magazine (10 magazines in a multipack)
Ground Edge:  2-sided ground-edge
Blade Facets:  Single bevel edge-ground

Scalpel Blade No 12

Length of Blade:  38 mm
Width of Blade:  11.4 mm
Material Thickness:  0.4 mm
Packaging Unit:  10 in a magazine (10 magazines in a multipack)
Ground Edge:  2-sided ground-edge
Blade Facets:  Single bevel edge-ground

Scalpel Blade No 13

Length of Blade:  42.3 mm
Width of Blade:  6.2 mm
Material Thickness:  0.4 mm
Packaging Unit:  10 in a magazine (10 magazines in a multipack)
Ground Edge:  2-sided ground-edge
Blade Facets:  Single bevel edge-ground

Scalpel Blade No 14

Length of Blade:  48.8 mm
Width of Blade:  7.5 mm
Material Thickness:  0.4 mm
Packaging Unit:  10 in a magazine (10 magazines in a multipack)
Ground Edge:  2-sided ground-edge
Blade Facets:  Single bevel edge-ground

Scalpel Blade No 15

Length of Blade:  37.1 mm
Width of Blade:  6.2 mm
Material Thickness:  0.4 mm
Packaging Unit:  10 in a magazine (10 magazines in a multipack)
Ground Edge:  2-sided ground-edge
Blade Facets:  Single bevel edge-ground

Convex Blade No 33

Length of Blade:  40 mm
Width of Blade:  8.5 mm
Material Thickness:  0.5 mm
Packaging Unit:  10 in a magazine (10 magazines in a multipack)
Ground Edge:  2-sided ground-edge
Blade Facets:  Single bevel edge-ground

Graphic Blade No 34

Length of Blade:  36.5 mm
Width of Blade:  5.7 mm
Material Thickness:  0.5 mm
Packaging Unit:  10 in a magazine (10 magazines in a multipack)
Ground Edge:  2-sided ground-edge
Blade Facets:  Double bevel edge-ground

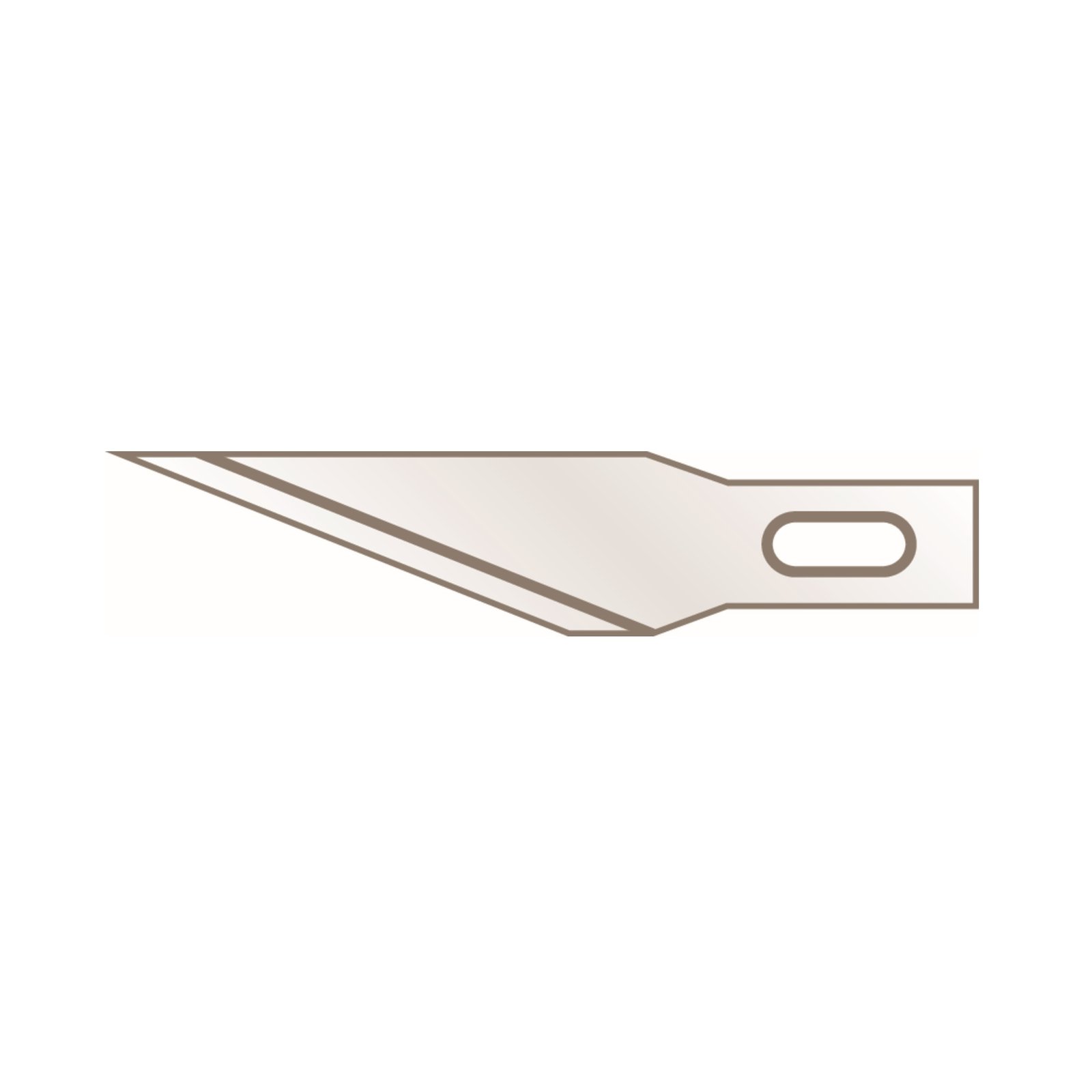

Graphic Blade No 72

Length of Blade:  40 mm
Width of Blade:  8.6 mm
Material Thickness:  0.5 mm
Packaging Unit:  10 in a magazine (10 magazines in a multipack)
Ground Edge:  2-sided ground-edge
Blade Facets:  Double bevel edge-ground

Graphic Blade No 605

Length of Blade:  32.5 mm
Width of Blade:  5.7 mm
Material Thickness:  0.5 mm
Packaging Unit:  10 in a magazine (10 magazines in a multipack)
Ground Edge:  2-sided ground-edge
Blade Facets:  Double bevel edge-ground

Graphic Blade No 606

Length of Blade:  31.1 mm
Width of Blade:  5.7 mm
Material Thickness:  0.5 mm
Packaging Unit:  10 in a magazine (10 magazines in a multipack)
Ground Edge:  2-sided ground-edge
Blade Facets:  Double bevel edge-ground
Safety feature: Rounded blade tip

Graphic Blade No 629

Length of Blade:  34.4 mm
Width of Blade:  5.7 mm
Material Thickness:  0.5 mm
Packaging Unit:  10 in a magazine (10 magazines in a multipack)
Ground Edge:  2-sided ground-edge
Blade Facets:  Double bevel edge-ground
Safety feature: Rounded blade tip

Small Special Purpose Blade No 643

Length of Blade:  43 mm
Width of Blade:  6 mm
Material Thickness:  0.5 mm
Packaging Unit: 10 in a magazine (10 magazines in a multipack)
Ground Edge:  2-sided ground-edge
Blade Facets:  Double bevel edge-ground
Blade characteristics: 2-cutting edge blade

Graphic Blade No 677

Length of Blade:  37 mm
Width of Blade:  6.1 mm
Material Thickness:  0.5 mm
Packaging Unit:  10 in a magazine (10 magazines in a multipack)
Ground Edge:  2-sided ground-edge
Blade Facets:  Double bevel edge-ground

Convex Blade No 679

Length of Blade:  32 mm
Width of Blade:  7 mm
Material Thickness:  0.5 mm
Packaging Unit:  10 in a magazine (10 magazines in a multipack)
Ground edge: 2-sided ground-edge
Blade facets: Single bevel edge-ground

Graphic Blade No 680

Length of Blade:  37.5 mm
Width of Blade:  6.1 mm
Material Thickness:  0.5 mm
Packaging Unit:  10 in a magazine (10 magazines in a multipack)
Ground Edge:  2-sided ground-edge
Blade Facets:  Double bevel edge-ground

Graphic Blade No 834

Length of Blade:  36.5 mm
Width of Blade:  5.7 mm
Material Thickness:  0.5 mm
Packaging Unit:  100 in a safety dispenser (10 safety-dispensers in a multipack)
Refinement/Version: Titanium Nitride (TiN) coated
Ground Edge:  2-sided ground-edge
Blade Facets:  Double bevel edge-ground

Graphic Blade No 8629

Length of Blade: 34.4 mm
Width of Blade:  5.7 mm
Material Thickness:  0.5 mm
Packaging Unit:  100 in a safety dispenser (10 safety-dispensers in a multipack)
Refinement/Version: Titanium Nitride (TiN) coated
Ground Edge:  2-sided ground-edge
Blade Facets:  Double bevel edge-ground
Safety feature: Rounded blade tip

Graphic Blade No 8605

Length of Blade: 32.5 mm
Width of Blade:  5.7 mm
Material Thickness:  0.5 mm
Packaging Unit:  100 in a safety dispenser (10 safety-dispensers in a multipack)
Refinement/Version: Titanium Nitride (TiN) coated
Ground Edge:  2-sided ground-edge
Blade Facets:  Double bevel edge-ground

Graphic Blade No 8606

Length of Blade: 31.1 mm
Width of Blade:  5.7 mm
Material Thickness:  0.5 mm
Packaging Unit:  100 in a safety dispenser (10 safety-dispensers in a multipack)
Refinement/Version: Titanium Nitride (TiN) coated
Ground Edge:  2-sided ground-edge
Blade Facets:  Double bevel edge-ground
Safety feature: Rounded blade tip
