CONTAIN-IT KIT WITH FLEXIBLE GUNVAC MODEL No 1524

CONTAIN-IT KIT WITH FLEXIBLE GUNVAC – Model No. 1524

Code:
290107004

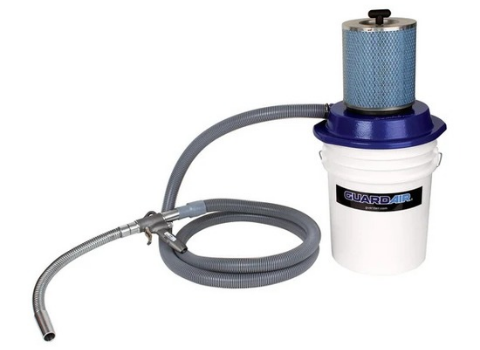

The Guardair Contain-It Kit is designed to work with GunVac Models 1500, 1510, and 1548, providing a convenient 5-gallon container for collecting and storing vacuumed debris. It is suitable for applications involving metal chips, shavings, sand, powders, sawdust, and other workplace debris.

The kit includes a durable plastic collection container with a weighted lid, helping support secure operation while making the container easy to empty when needed. A standard cartridge filter is included for filtration, along with a 1-1/4-inch ID x 10-foot flexible vacuum hose. The supplied hose cuff and clamp help maintain a firm connection between the hose and vacuum system. An optional cloth filter bag can also be used for additional filtration protection.

Features

  • Flexible GunVac: Rugged all-metal construction with a large hanging eyelet and contoured comfort grip with trigger lock. Includes a 3/4″ FNPT vacuum inlet, 1-1/4″ OD male friction-fit vacuum outlet, dual 1/4″ FNPT compressed-air inlets, and an 18″ x 1-5/16″ OD flexible metal extension.
  • Contain-It Kit: Includes a 5-gallon plastic collection container with handle and a cast-iron lid featuring a 1-1/4″ vacuum hose inlet. The top handle makes the unit easier to carry and empty.
  • Efficient Filtration: Supplied cartridge filter provides 10-micron filtration with a minimum 90% efficiency rating.
  • Flexible Vacuum Hose: Comes with a 1-1/4″ ID x 10′ flexible vacuum hose, complete with a hose cuff and clamp for a secure connection.



Contain-It Kit:

  • (1) Flexible GunVac
  • (1) Flexible Metal Extension With Tapered Inlet – 18”
  • (1) 5-Gallon Container
  • (1) Weighted Lid
  • (1) Standard Cartridge Filter
  • (1) 1-1/4” ID x 10’ Vacuum Hose
  • (1) 1-1/4” Vacuum Hose Cuff
  • (1) Vacuum Hose Clamp

Product Details

Part Number Vacuum Hose ID (in) Compressed Air Inlet (in) Compressed Air Usage (cfm) Min. Size Air Compressor (hp) Inlet Dimensions
(L” x W” x H”)
Weight (lbs)
1524 1.25 1/4 29 6.4 1-1/4″ ID 13.8 X 13.8 X 27 24.8
