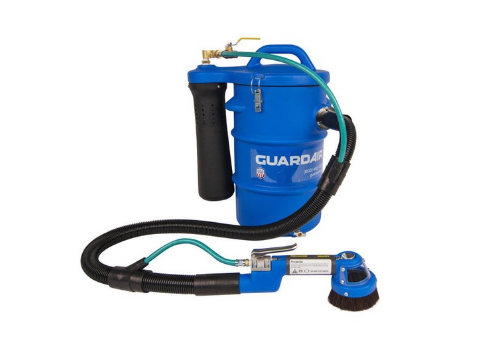

The Guardair Blind Hole® Vacuum is designed to remove debris trapped inside blind holes safely and effectively. By using pneumatic vacuum technology, it helps eliminate chip fly-back and the additional cleanup caused by blowing debris out of holes.
The BH4000 runs on standard shop compressed air and combines a powerful pneumatic vacuum with an on-demand air agitator. The agitator helps loosen and lift chips or debris located deep inside blind holes and crevices. A clear-view window allows precise positioning for effective operation, while the 5-foot vacuum hose provides flexible reach.
The Blind Hole Vacuum can be mounted on any vertical surface and includes a 5.5-gallon chemical-resistant container along with a standard air filter. The unit is equipped with a 3/8″ FNPT inlet for connection to a compressed-air supply.
Product Contains:
| Model Number | Drum Capacity (gal) | Vacuum Hose ID (in) | Compressed Air Inlet (in) | Compressed Air Usage (cfm) | Vacuum Flow (cfm) | Vacuum Lift (in H₂0) | Min. Size Air Compressor (hp) | Dimensions (L” x W” x H”) | Weight (lbs) |
| BH4000 | 5.5 | 1.25 | 3/8 | 33 | 73 | 77 | 4.7 | 21.8 X 12.5 X 17 | 20.6 |
